Ultracompact Safety/measuring light curtain NiLAB NL-EB15

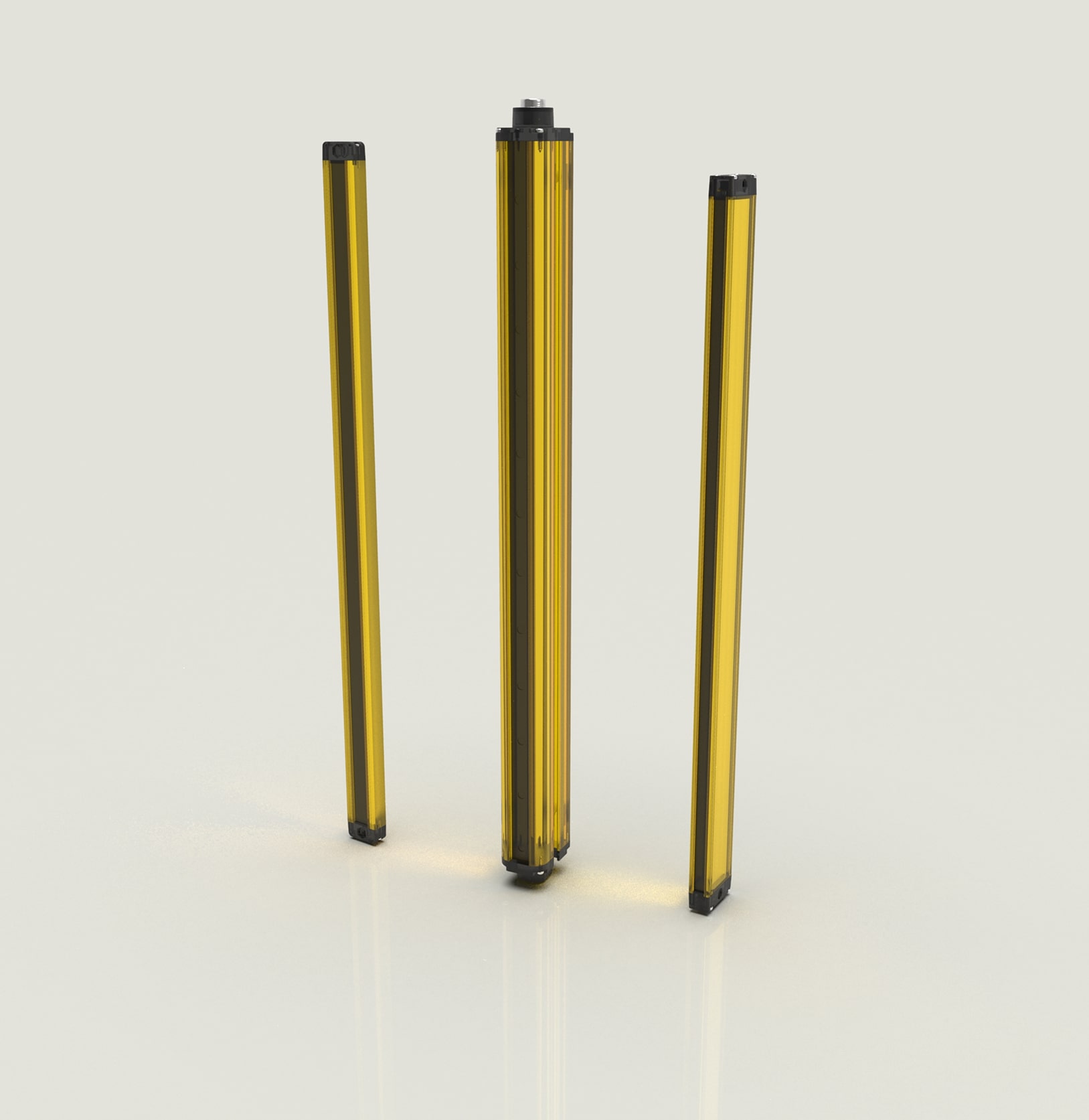

SAFETY FAMILY 1

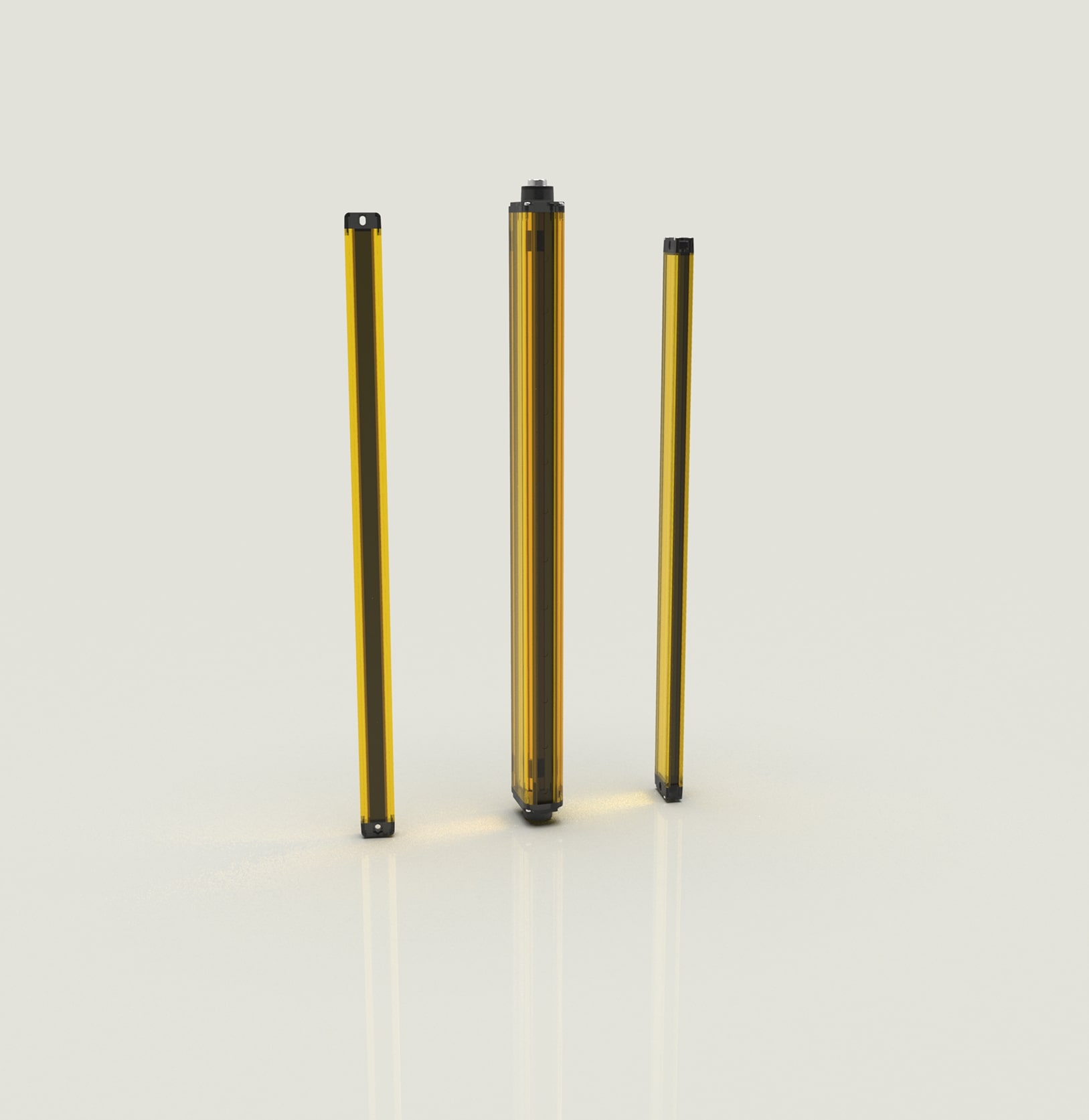

SAFETY FAMILY 2

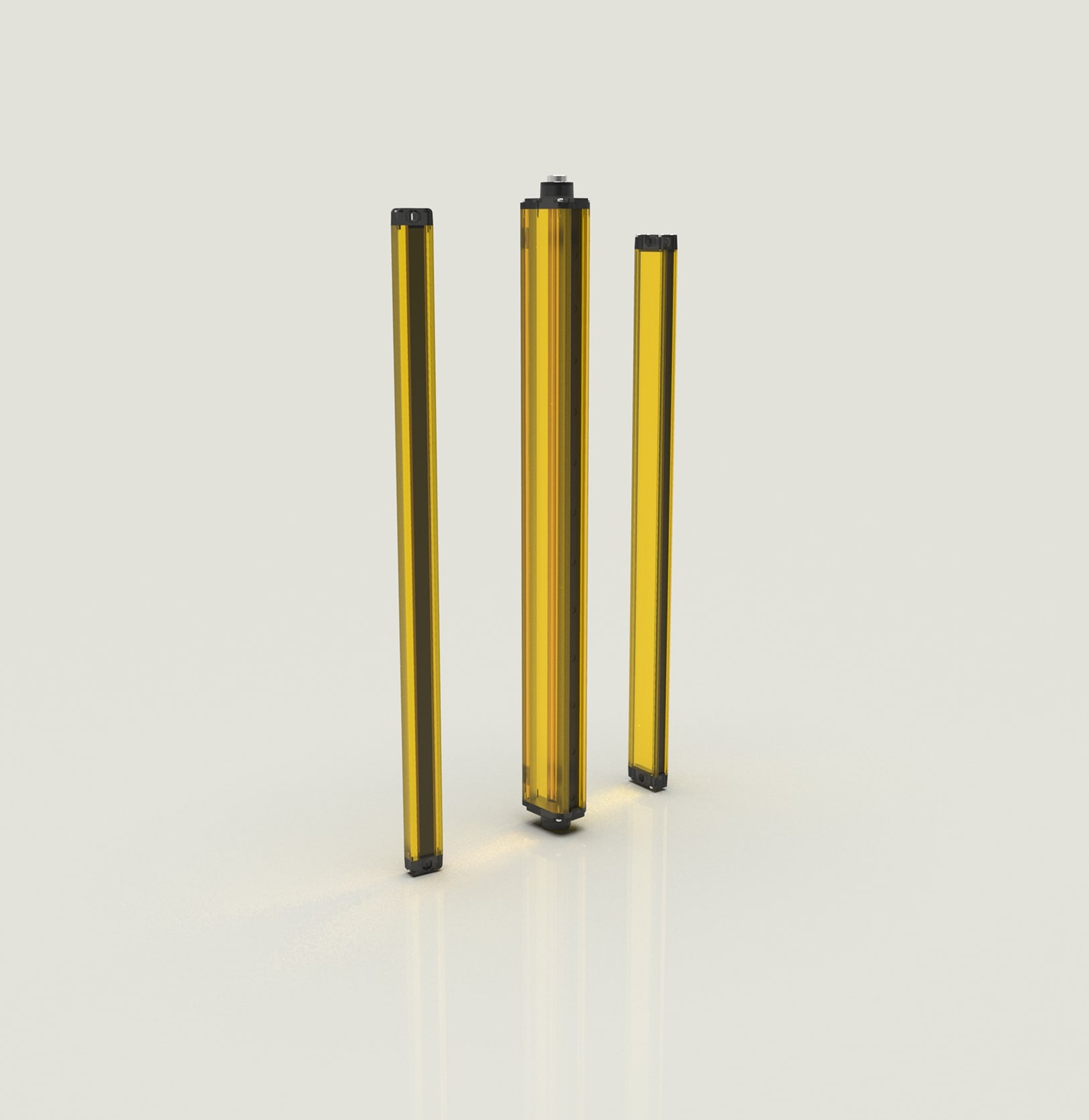

SAFETY FAMILY 3
In the rapidly evolving landscape of industrial automation, personnel safety is non-negotiable As advanced machinery and robotic systems become standard, the need for discreet yet robust safety systems is more critical than ever. The NiLAB NL-EB15series offers a cutting-edge solution, acting as a virtual safety barrierthat protects workers without sacrificing critical operational space or efficiency.

NiLAB safety barriers are designed to prevent access to hazardous areas or contact with dangerous machinery. They are an essential part of a comprehensive machine guarding strategy, working alongside other safety components like emergency stops and interlocks. The goal is not to hinder productivity, but rather to ensure a safe working environment without compromising operational efficiency.

Features:

  • Ultra-thin safety light curtain, compact size for small installment space
  • Widely use in non-standard equipment or equipment with small installation space
  • Apply in optical detection equipment such as AOI as a protection or start signal

Technical Specifications (NL-EB15 Series)

ParameterSpecification
Housing dimensions39×15 mm (Cross-Section)
Enclosure materialAluminum alloy
Enclosure ratingIP54
Power supplyDC 10 V–30 V
Power consumption<5 W
Wavelength940 nm
Sensing methodThrough-beam type
Sensing distances0.1–0.5 m, 0.1–2 m, 0.1–4 m
Anti-optical interference10,000 Lux (angle >5∘)
Beam spacing options10 mm, 20 mm, 40 mm
Resolution options15 mm, 25 mm, 45 mm
Beam count options10 mm spacing: 8, 12, 16, …, 160 beams 20 mm spacing: 4, 6, 8, …, 80 beams 40 mm spacing: 4, 6, 8, …, 40 beams
Output type (OSSD)PNP/NPN, current <200 mA, residual voltage: 1 V max
Protective circuitryOver voltage protection, power supply reverse polarity protection, over current protection
Operating temperature−10∘C to +85∘C
Storage temperature−30∘C to +70∘C
Operating humidityMax 85% at 20∘C



technical documentation
↗
Chat
↗

Related products

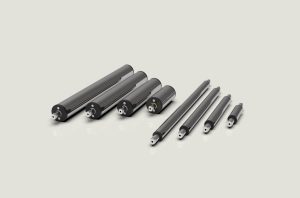

  • MagLift – Magnetische Feder für vertikale Anwendungen

    MagLift – Magnetic spring for vertical applications

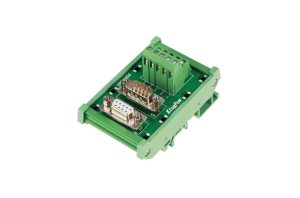

  • Terminal blocks with connectors

  • Reversed Encoder

    Reversed Encoder

  • Nl Nq6d Small 1

    NL-NQ6D SIN/COS Interpolator

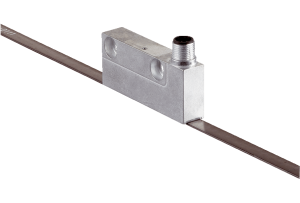

  • Relative and absolute magnetic encoders
