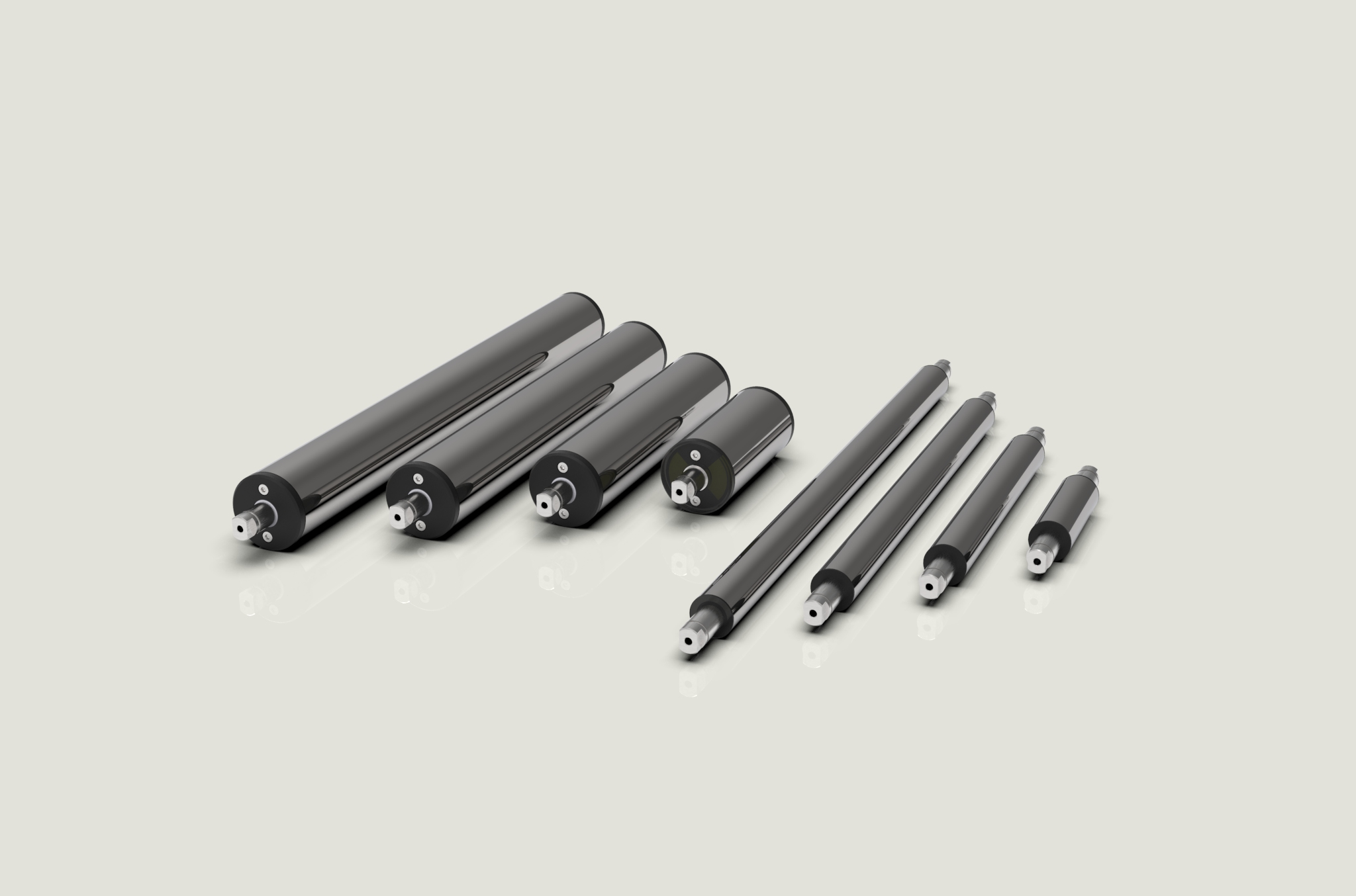

MagLift – Magnetic spring for vertical applications

MagLift – Magnetische Feder für vertikale Anwendungen
MagLift – Magnetische Feder für vertikale Anwendungen
MagLift – Magnetische Feder für vertikale Anwendungen
In vertical applications, when the linear motor is not powered, the linear axis can fall down due to gravity. Using MagLift, the gravitational force is counterbalanced and the linear motor remains in steady state.

6 force sizes are available : 12, 17, 22, 40, 50 and 60 N, respectively MagLift12, MagLift17, MagLift22, MagLift40, MagLift50 and MagLift60.

Characteristics:

  • Slider diameter 12mm and stator diameter 20mm
  • Stroke up to 290 mm
  • Constant force on the entire stroke
  • Force tolerance +/- 10%
  • No electronic control needed, no compressed air
  • For high dynamic movements
  • Push or pull movement possible (symmetrical operation)
  • Set of accessories for fixing in combination of NiLAB Linear motor
  • Force tolerance +/-10%
  • Working temperature from -20 to +80 degrees
  • Integrated techno polymer bearings
