CX-CAT-011 – Remote I/O Digital EtherCAT Module 16+16 I/O

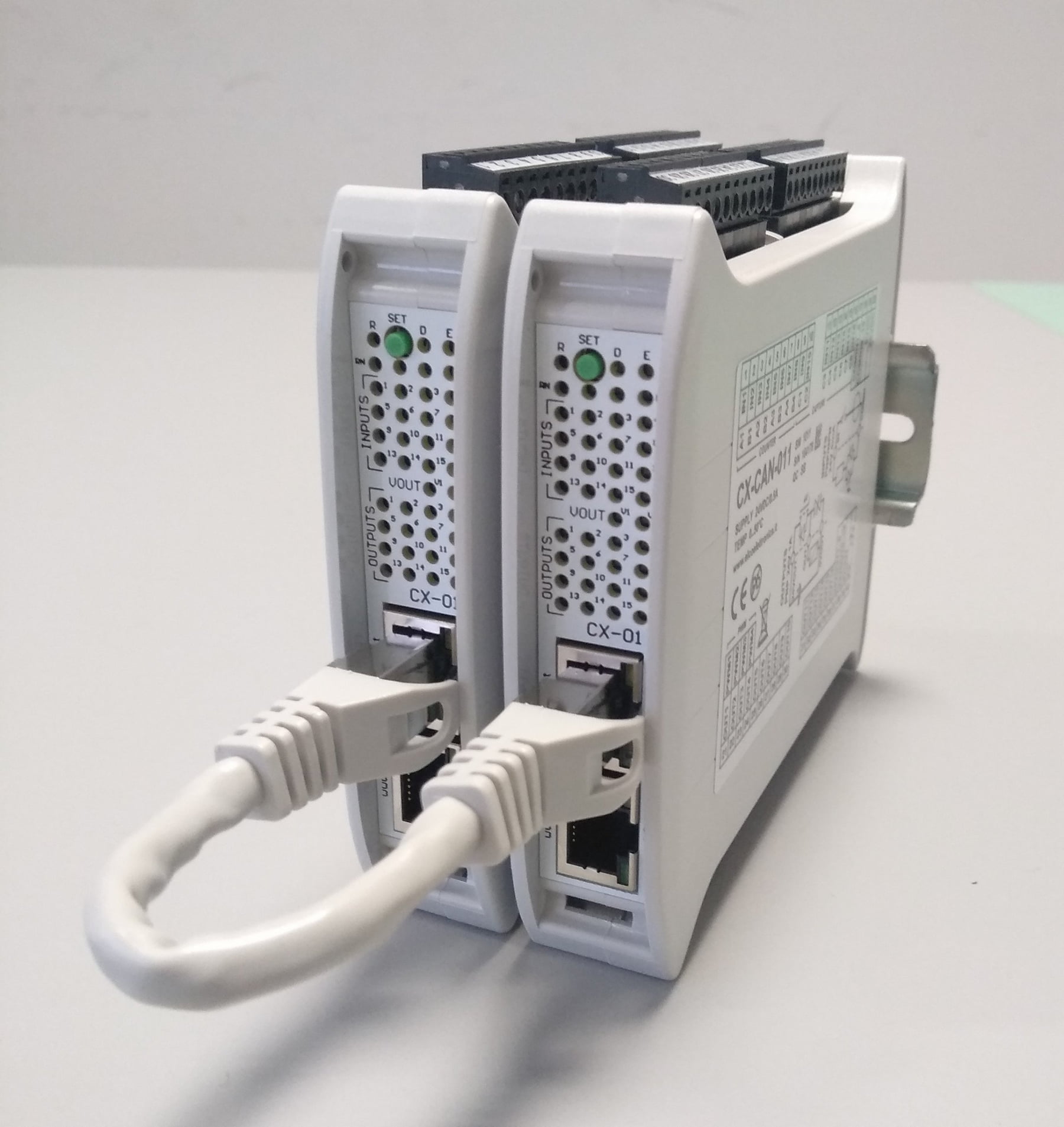

CX-CAT-011 – Remote I/O Digital EtherCAT Module 16+16 I/O - CX_011_4-scaled-1

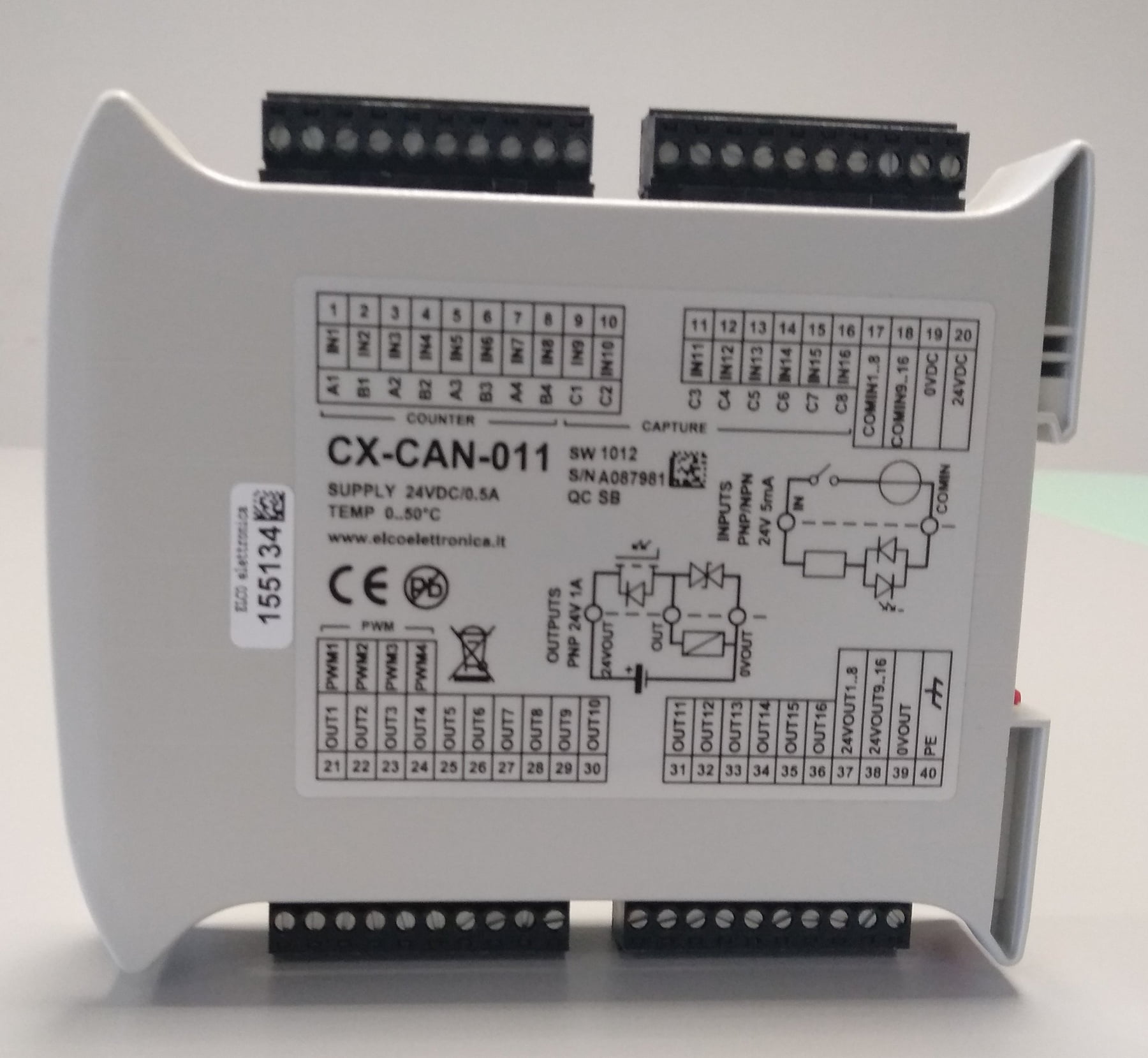

CX-CAT-011 – Remote I/O Digital EtherCAT Module 16+16 I/O - CX_011_3-scaled-2

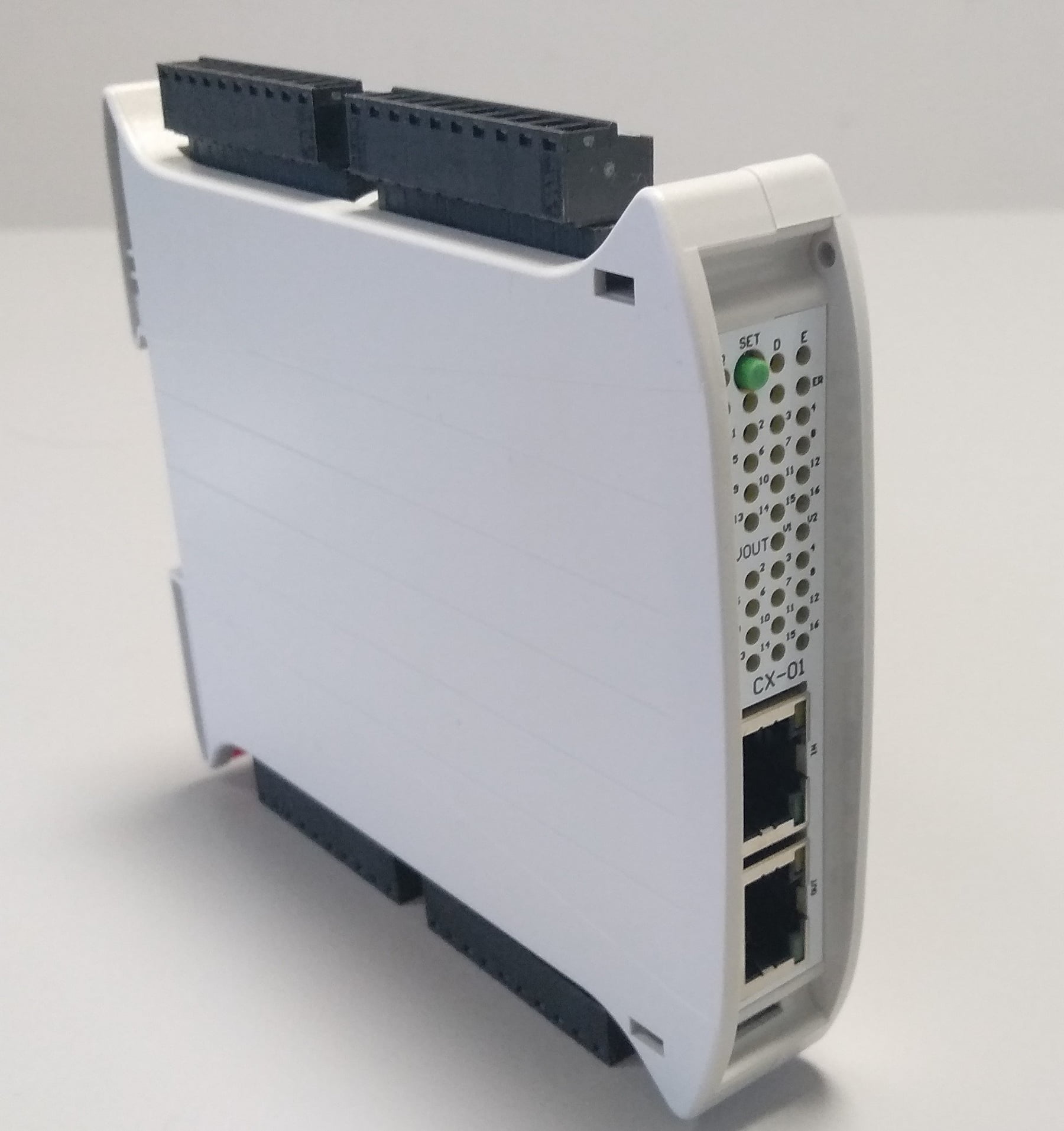

CX-CAT-011 – Remote I/O Digital EtherCAT Module 16+16 I/O - CX_011_2-2
CX is a compact remote I/O module for DIN guide which can be controlled with EtherCAT fieldbus. It can be combined with other I/O modules in daisy chain.

Technical Features

Inputs: 16 PNP OPTOISOLATI, 24V 20mA
Outputs: 16 PNP OPTOISOLATI, 24V 0,8A
Temperature: 0 – 55° C
Power Supply: 24V (18-36V) – 0,5°
Insulation: all inputs and outputs are 1kV protected
Termination: the EtherCAT module must be terminated with 120 ohm 1/4W resistance
Mounting: DIN rail

Dimensions

H: 101mm / L: 23mm / D: 119mm
