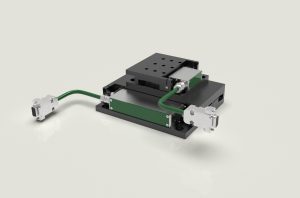

MCSS Mini Linear Slides

At the core of the system is a robust recirculating ball-bearing guide system which not only ensures excellent load capacity but also natively integrates the crucial anti-rotation function within the slide. Integration is made extremely fast thanks to the adoption of tubular linear motors with an integrated drive, which allow the use of the same intuitive control type typical of pneumatics, simplifying the interface.Furthermore, 24VDC operation enhances safety and facilitates use in sensitive sectors such as medical and pharmaceutical, drastically reducing the risks associated with higher mains voltages (230/400VAC). For more advanced applications requiring axis synchronization or interpolation, the MCSS slides support major industrial communication standards such as MODBUS RTU, CANopen DS402, and EtherCAT.

Key Features

• High forces: achievement of high nominal and peak force values due to the use of an integrated dual linear motor
• Space-saving design: extremely compact dimensions that facilitate integration into confined spaces
• Precision and load: guide system based on recirculating ball-bearing linear guides with integrated lubrication, ensuring excellent load capacity and reduced maintenance
• Easy integration: 24VDC control with input logic similar to that of solenoid valves, allowing for rapid integration with PLCs
• Reduced operating costs: enables the elimination of compressed air, leading to substantial energy savings
• Added safety: various mounting options, including the possibility of combining with the MagLift magnetic spring for vertical holding when the motor is switched off
• Target applications: particularly recommended for high-precision sectors such as lithium battery production systems, assembly and Pick & Place cycles
