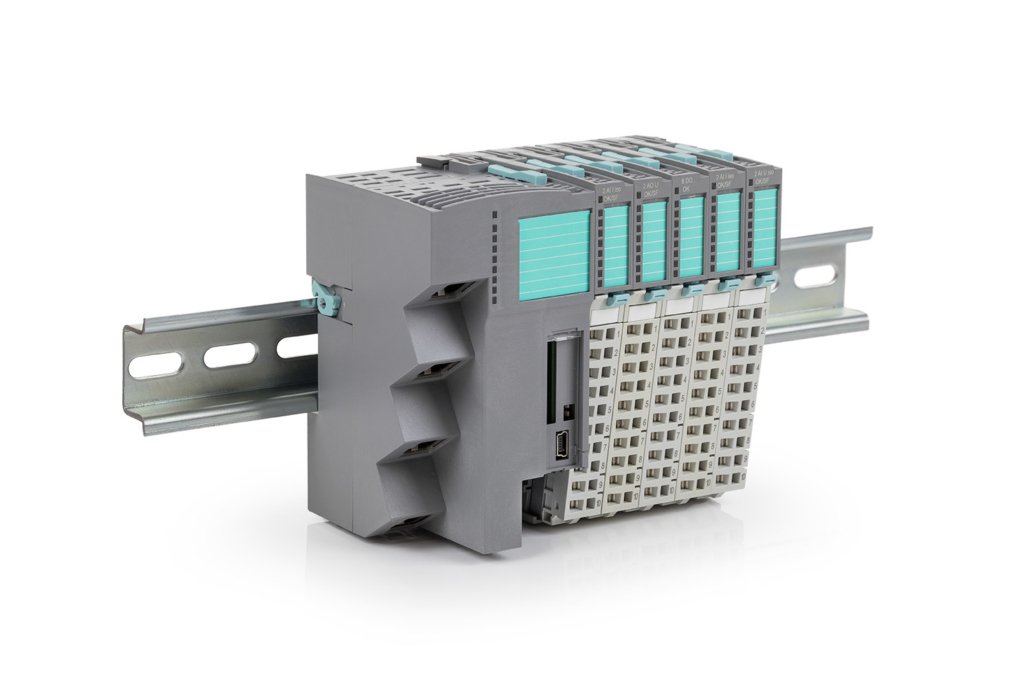

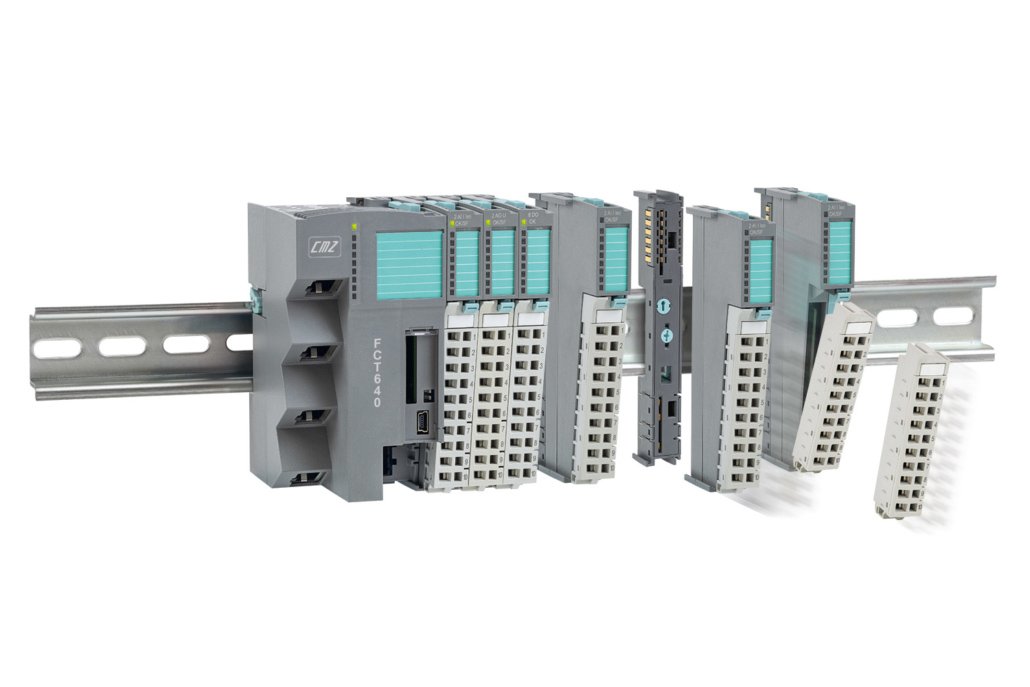

Master controller FCT640 modular

FCT640 integrates motion control solutions into a single and compact technological device. The controller is equipped with all the field buses used in industry (EtherCAT, CANopen, ModbusTCP) and integrated modular I/O units, both digital and analog.

The choice of the OPC UA communication protocol is an implementation, which will be available soon, to allow the system to be networked to the outside efficiently and safely by ensuring full connectivity with other devices as a relevant feature for Industry 4.0. interoperability.

The power of the processor, the presence of Ethernet and CAN and serial ports, alongside with a total memory capacity of over 1 GB plus an SD-Card, complete FCT640 technological equipment.

Dimensions mm: H 110 x W 57 x D 73.Weight gr: 300

TECHNICAL SPECIFICATIONS

PROCESSOR

CPU RISC dual core 64 bit
1. GHz three level cache

POWER SUPPLY

24 VDC

FIELDBUS

EtherCAT Master
CANopen Master

MEMORY CAPABILITY

1GB Nand flash for storage
512 MB DRAM high bandwidth 64-bit 1666 MT/s
32 KB Ferromagnetic RAM (non-volatile PLC data)
SD-Card

COMMUNICATION PORTS

1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)
2xRJ45 Ethernet 10/100 MBit (Fieldbus)
1xRJ45 CAN-Bus (CANopen Master)

NETWORK CONNECTIVITY

OPC-UA (soon available)
Modbus TCP Master/Slave
Communications based on UDP-TCP
WEB Server
PLCHandle

INTEGRATED I/OS

64 modules, each with a max of 16-bit IO or 8 channel analog
9 LEDs
RTC with CR2032 battery
Reset-Button / Restore-Button
0° / 50°C ambient temp.
Fanless

SOFTWARE FEATURES
IEC61131 Environment CODESYS
